Haldimann H1 - Flying Central

Made to order and available in 18K gold ($212,160) or platinum ($215,470), also 37 mm or 41 mm for additional charge

***Takes 4 years to make

Movement diameter: 31.58 mm (= 14-lignes),

Tourbillon diameter: 17.80 mm

Height of movement: 3.70 mm

Total height: 7.40 mm

Energy reservoir: Conventional barrel (three spring barrels)

Gears: Conventional train

Escapement: Haldimann lever escapement

Type of balance: Glucydurscrew balance

Balance diameter: 14.50 mm

Balance pivots: Shock-absorbing

Frequency: 2.5 Hz (18,000 vph)

Regulation: Regulating screws

Display: Conventional, hours,minutes and seconds from thecentre by means of hands

Hand setting: Conventional crown

Winding mechanism: Conventional crown

Winding gear: Conical wheel

Platinum: $217,250

18K Gold: $214,000

HALDIMANN H1 SPECIFICATIONS

MOVEMENT:

Created and completely manufactured by Haldimann Horology

Cal.H. Zen-A: diameter 14’’’ 31.58 mm,height 3.7 mm, with tourbillon and hands

7.4 mm, 2.5 Hz 18,000 vph, 32 jewels

Winding and hand-setting via a crown

Central indication of hours and minutes with hands

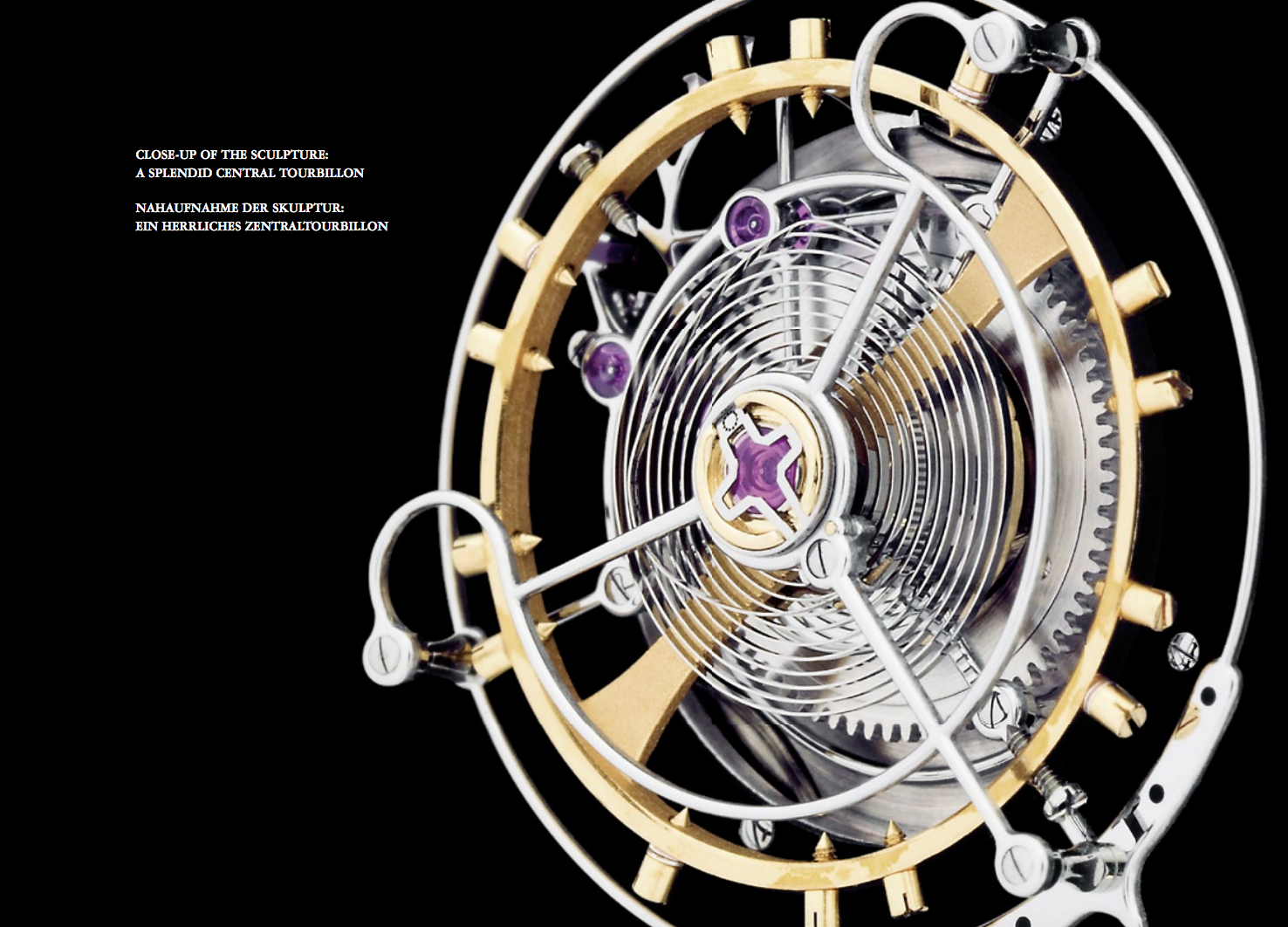

One-minute flying tourbillon with Haldimann Swiss lever escapement, Haldimann shock-absorbing, Nivarox 1 quality balance spring with Breguetovercoil, Glucydur screw balance

Regulated via two regulating screws

Hand-engraved numbering

Special ball bearings with seven ruby balls

Manual winding mechanism with threespring barrels

Two opposed gear trains balance the forces on the tourbillon carriage 38-hour power reserve

Gilded-plated satin-finish surfaces

CASE:

Diameter 39 mm and 42 mm, height 10.8 mm

Hand-engraved numbering

Solid, handmade, with typical Haldimann satin finish, available in yellow gold, rose gold, white gold and platinum

Specially manufactured domed sapphire crystal with polished facet

BACK:

Flat sapphire crystal with polished facet

HANDS:

Handmade in stainless steel or gold

DIAL:

Special satin finish in black, silver or rhodium

Engraved numerals filled with one of the following colours: black, silver, gold, green, red or blue

STRAP:

Hand-sewn, folded edges, alligator strap, size 20/18, stamped with the Haldimann logo, available in the colours: black, brown, green, red or blue

BUCKLE:

Handmade, with the Haldimann logo, as a rule matching the case in the materials: yellow gold, rose gold, white gold and platinum

Buckle and strap are secured with screws

BOX:

Mahogany box made exclusively for Haldimann Horology and manufactured entirely in Switzerland. Inside covered with soft white leather.

Handmade hinges and joints
